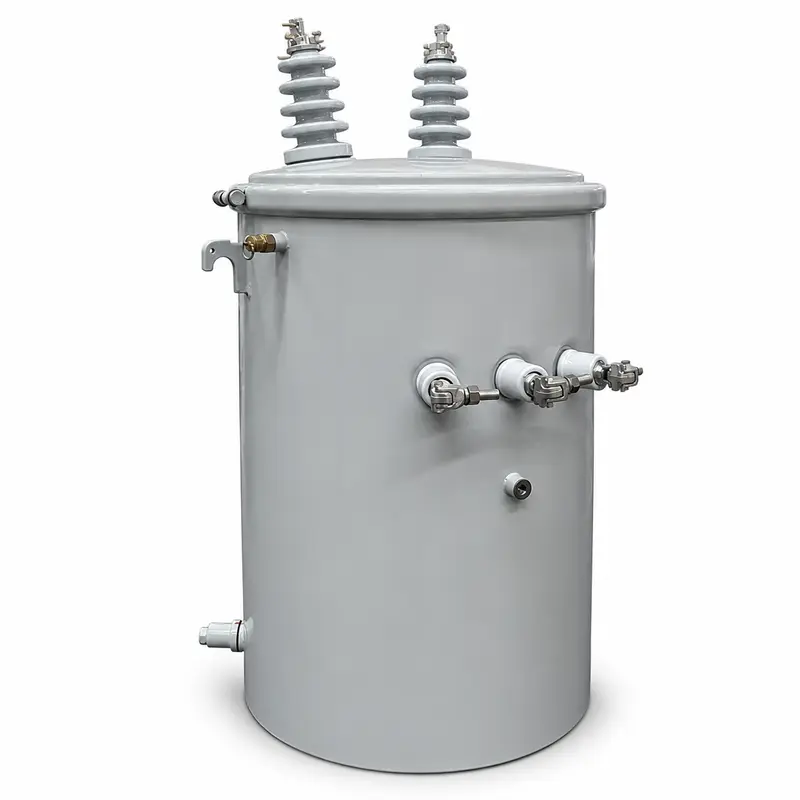

Pole-Mounted Transformers
Built around a toroidal (wound-ring) coil, this single-phase oil-filled transformer mounts directly on utility poles and is offered in 15, 16, 25, 37.5 and…
| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 15 / 16 / 25 / 37.5 / 50 kVA |
| Input Voltage (HV) | 7.2 kV (or custom) |
| Output Voltage (LV) | 380 / 220 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Aluminium / Copper |
| Coil Type | Toroidal (Wound-Ring) Coil |
| Core | Silicon Steel Sheet |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
| Package Size | 120 × 85 × 110 cm |
| Gross Weight | 60 kg |
These figures reflect the product data we were given. Actual dimensions, materials, colors and packaging may vary slightly pending sample approval and final order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

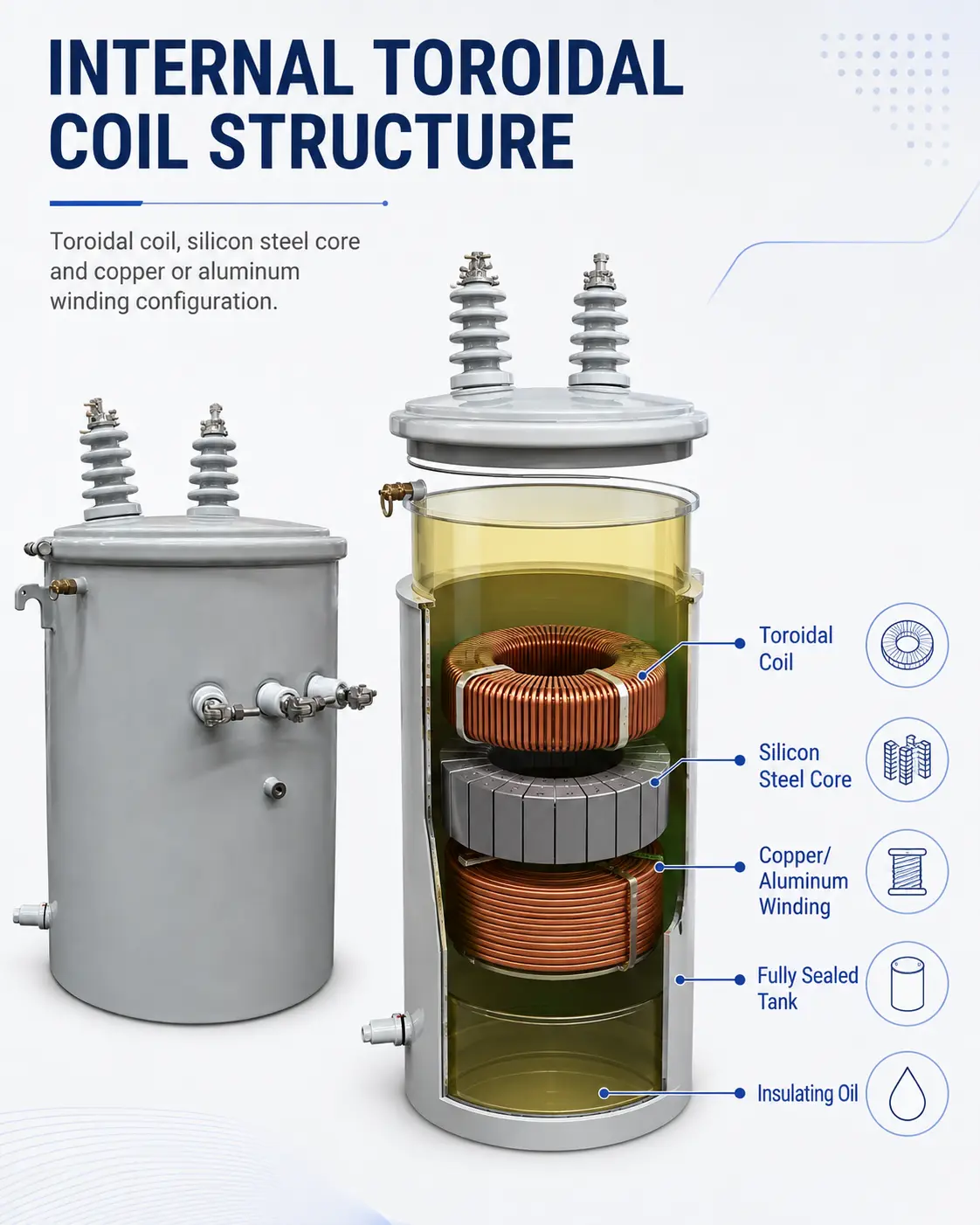

Built around a toroidal (wound-ring) coil, this single-phase oil-filled transformer mounts directly on utility poles and is offered in 15, 16, 25, 37.5 and 50 kVA ratings. It steps 7.2 kV down to 380/220 V (custom ratios available) inside a compact, fully sealed cylindrical tank designed for outdoor overhead service. Windings come in aluminium or copper, and the unit meets IEC and other international standards, making it a solid fit for residential, rural and light-commercial distribution.

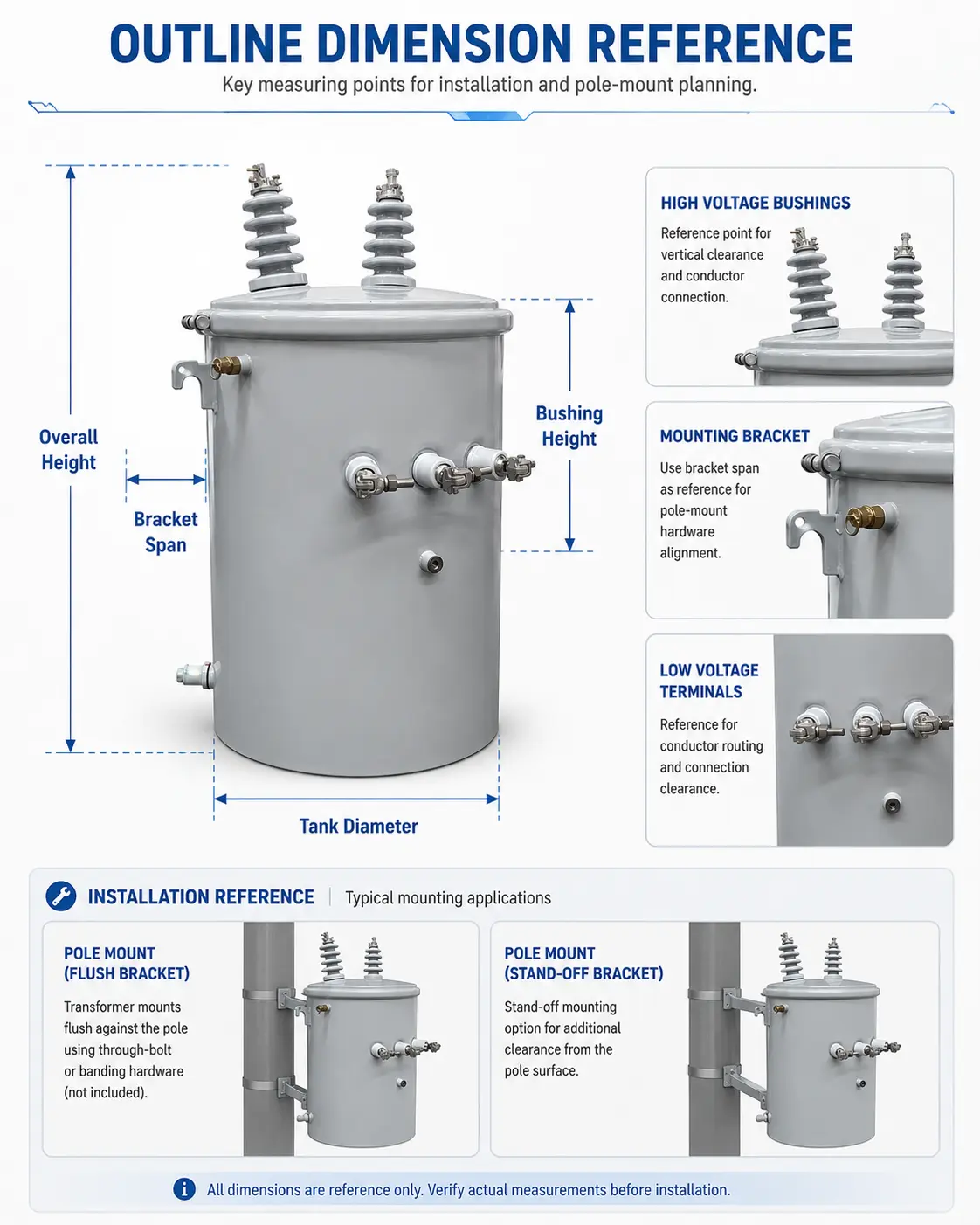

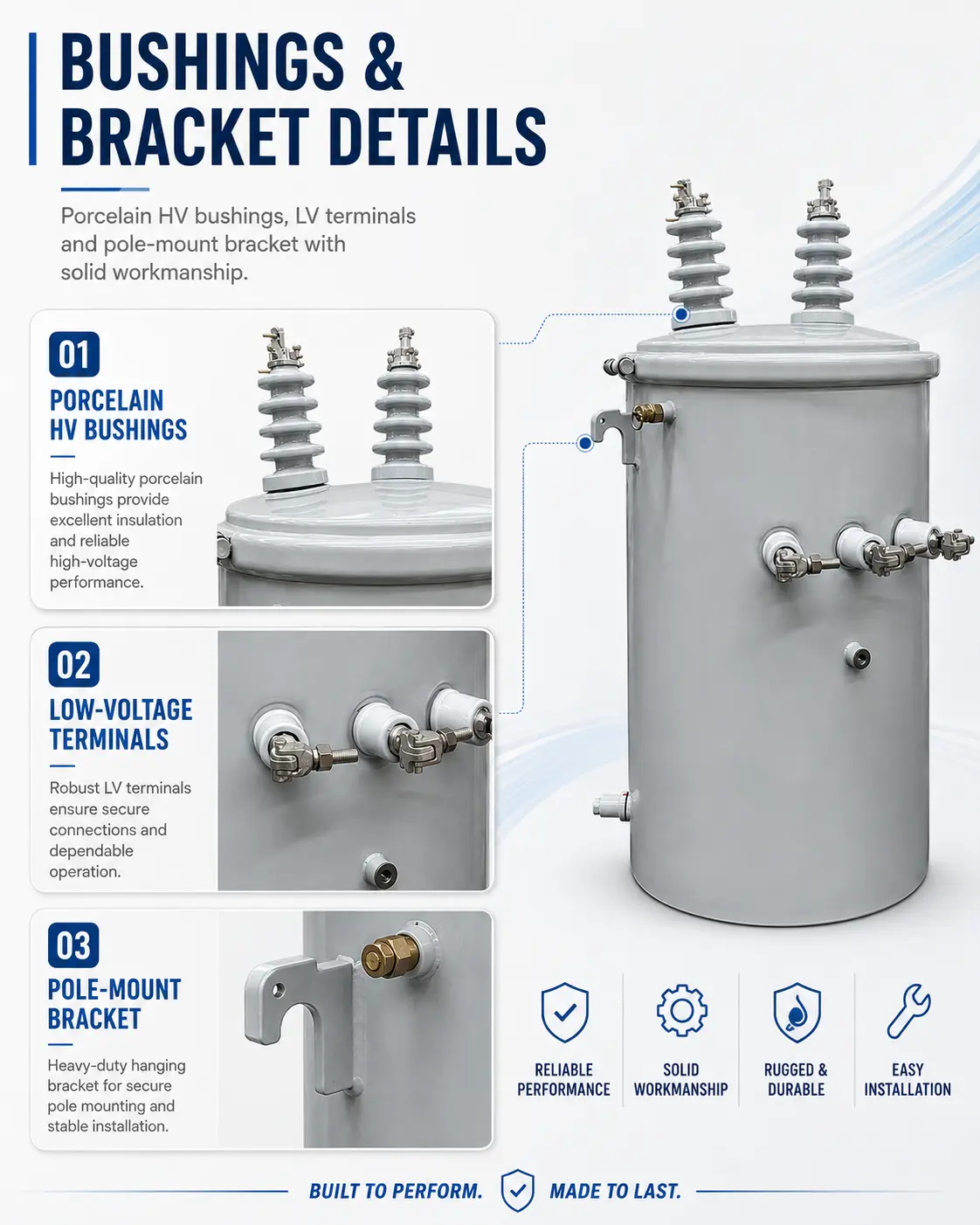

A pair of high-voltage porcelain bushings sits atop the sealed steel tank, with low-voltage terminals mounted to the side and brackets that bolt straight onto a distribution pole. Because the tank is fully sealed and oil-filled, the windings stay shielded from moisture while the oil handles cooling duty — the combination that keeps this transformer running dependably with little upkeep.
Suited to overhead distribution circuits serving residential subdivisions, rural electrification projects, farms, street lighting and light-commercial connections that need a single-phase pole-mounted step-down.

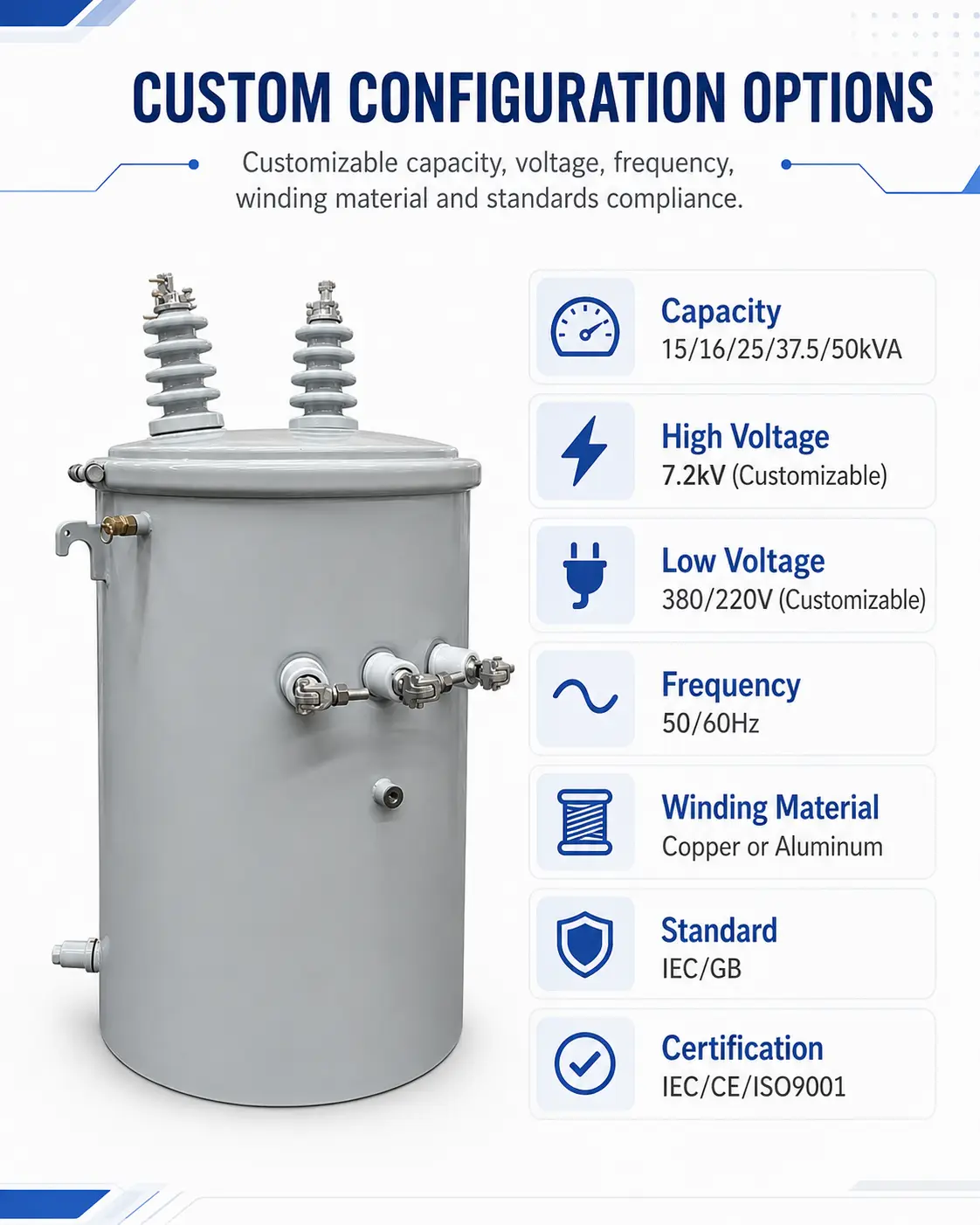

Rating, HV/LV voltage combination, winding metal, bushing style and pole-mounting hardware can all be adapted to match local grid codes such as ANSI or IEC.
The rated capacity is 15 / 16 / 25 / 37.5 / 50 kVA, with an input voltage of 7.2 kV (or custom). Other ratings in the same series are quoted on request.
Slim, cylindrical single-phase housing purpose-built for overhead pole mounting; Hermetically sealed oil tank that keeps maintenance visits to a minimum outdoors; Toroidal winding geometry that helps hold losses down and voltage steady.
Rating, HV/LV voltage combination, winding metal, bushing style and pole-mounting hardware can all be adapted to match local grid codes such as ANSI or IEC.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
