Pole-Mounted Transformers
One platform, nine ratings: this single-phase oil-filled pole-mounted transformer is built from 15 kVA all the way to 333 kVA (15 / 20 / 25 / 37.5 / 50 / 100…

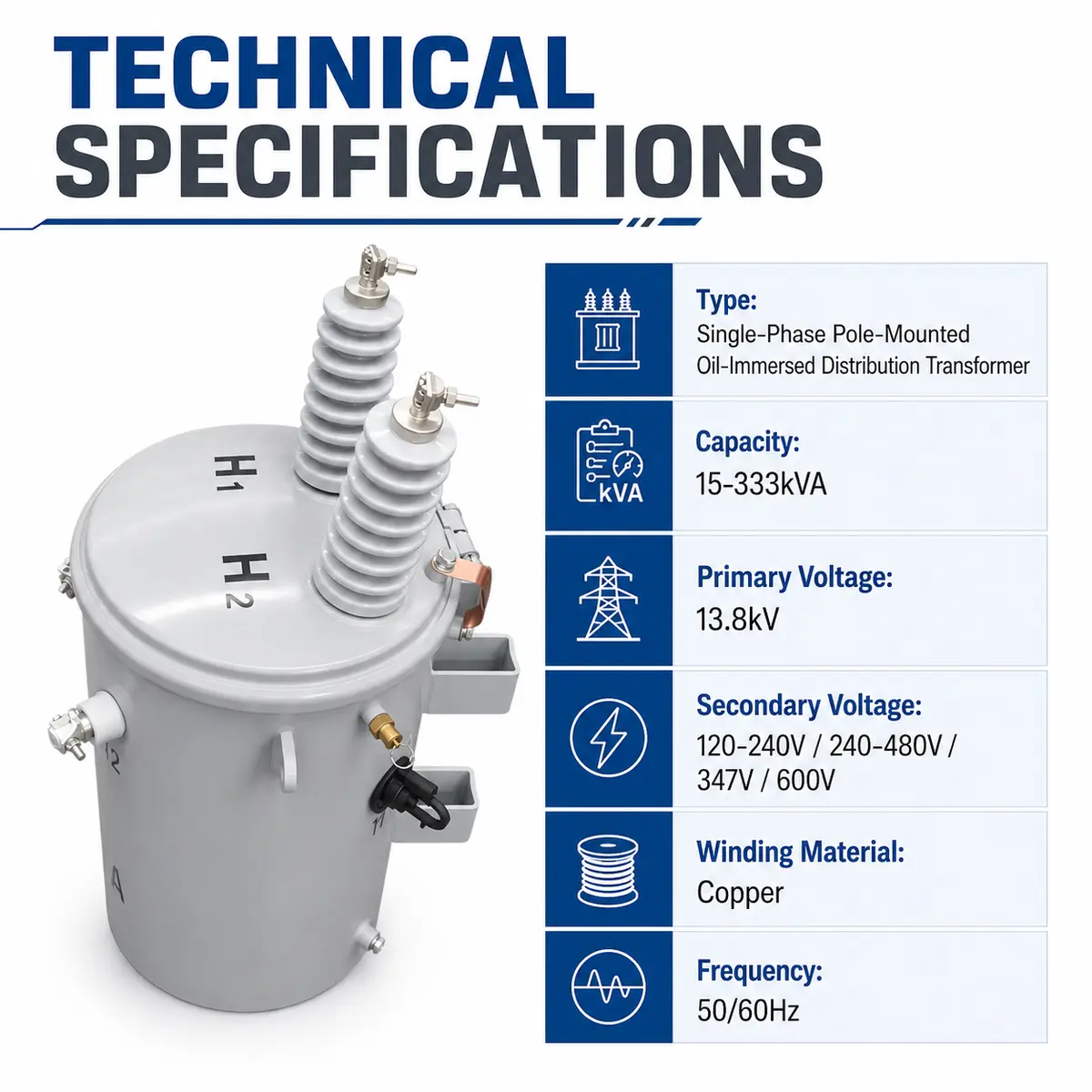

| Parameter | Value |
|---|---|
| Product Type | Single-Phase Pole-Mounted Oil-Filled Transformer |
| Rated Capacity | 15 / 20 / 25 / 37.5 / 50 / 100 / 167 / 250 / 333 kVA |
| Input Voltage (HV) | 13.8 kV |
| Output Voltage (LV) | 120-240 / 240-480 / 347 / 600 V (or custom) |
| Frequency | 50 / 60 Hz |
| Phase | Single |
| Winding Material | Copper / Aluminium |
| Coil Structure | Fully Sealed Construction |
| Application | Power Distribution System |
| Standard | IEC / GB |
| Certification | IEC, CE, ISO9001, ISO14001, ISO45001, CQC, GOST, EAC |
| Packing | Wooden Case |
| Package Size | 120 × 85 × 110 cm |
| Gross Weight | 60 kg |
Figures above come from the supplied product data. Confirm exact dimensions, materials, colors and packaging against the approved sample and final order.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.
One platform, nine ratings: this single-phase oil-filled pole-mounted transformer is built from 15 kVA all the way to 333 kVA (15 / 20 / 25 / 37.5 / 50 / 100 / 167 / 250 / 333 kVA), stepping a 13.8 kV primary down to a selectable low-voltage secondary for overhead distribution work. The sealed cylindrical tank is designed for outdoor utility-pole service, and copper or aluminium windings carry IEC and related international certifications suited to residential, rural and light-commercial networks.

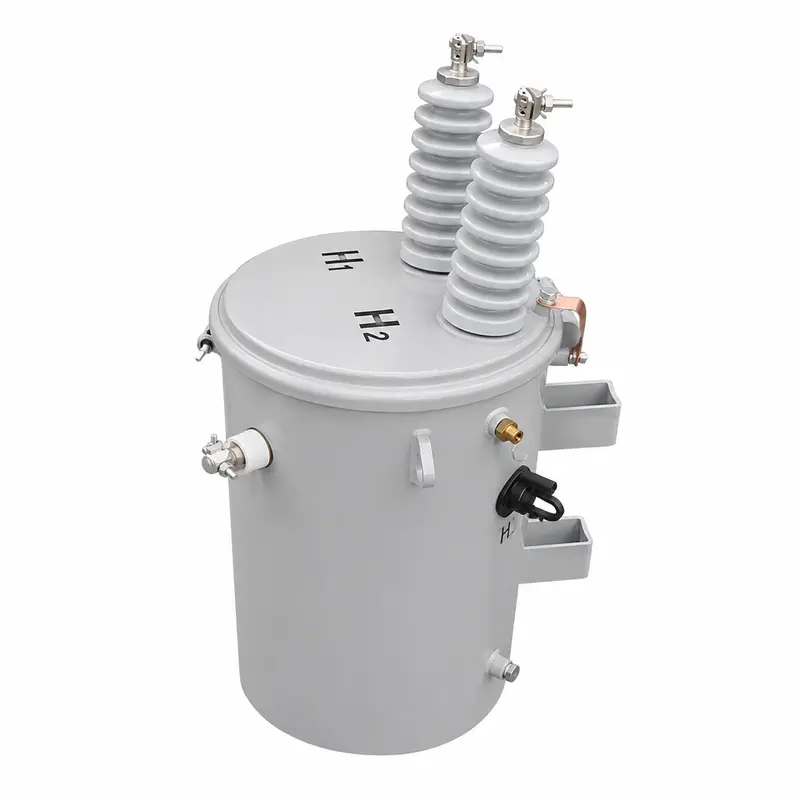

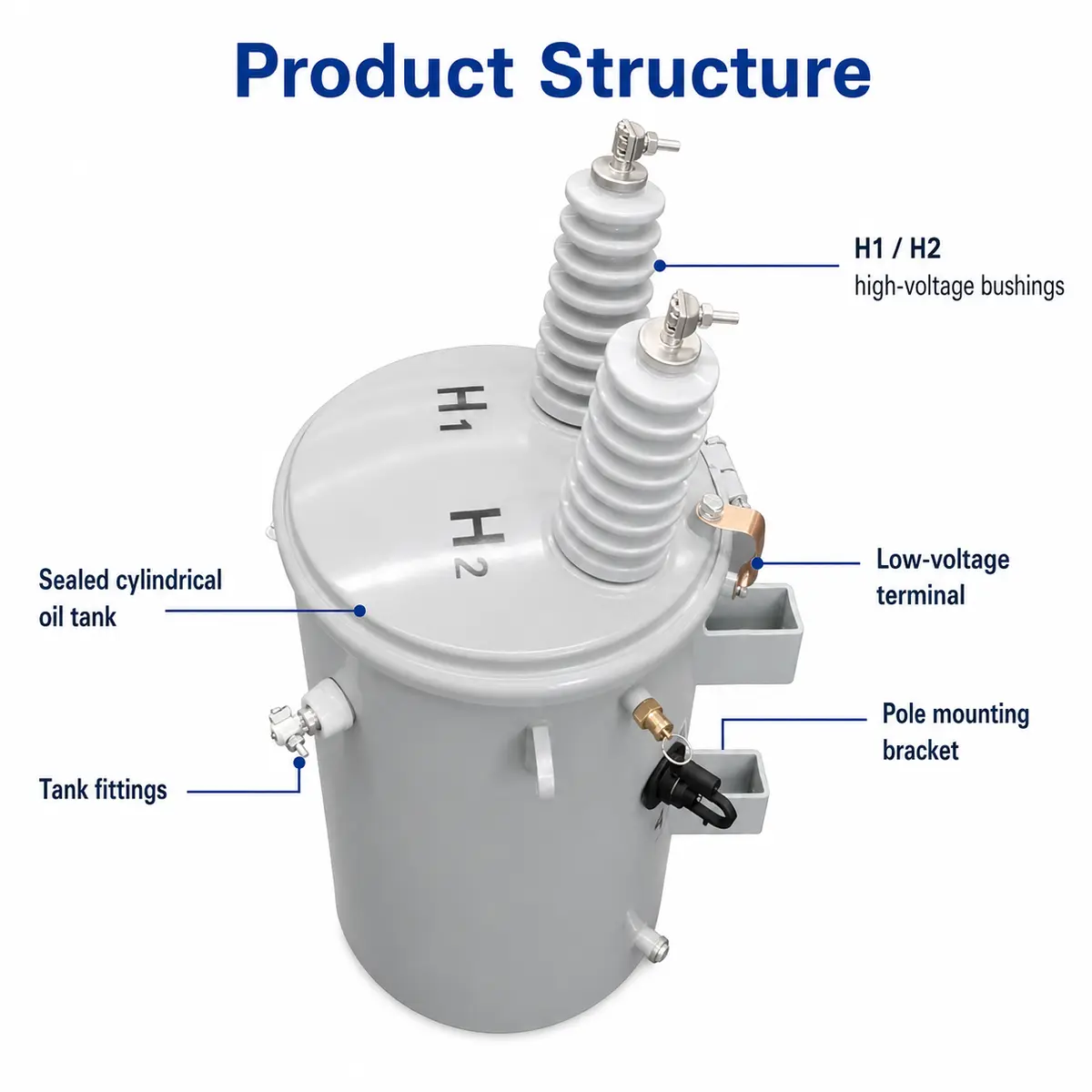

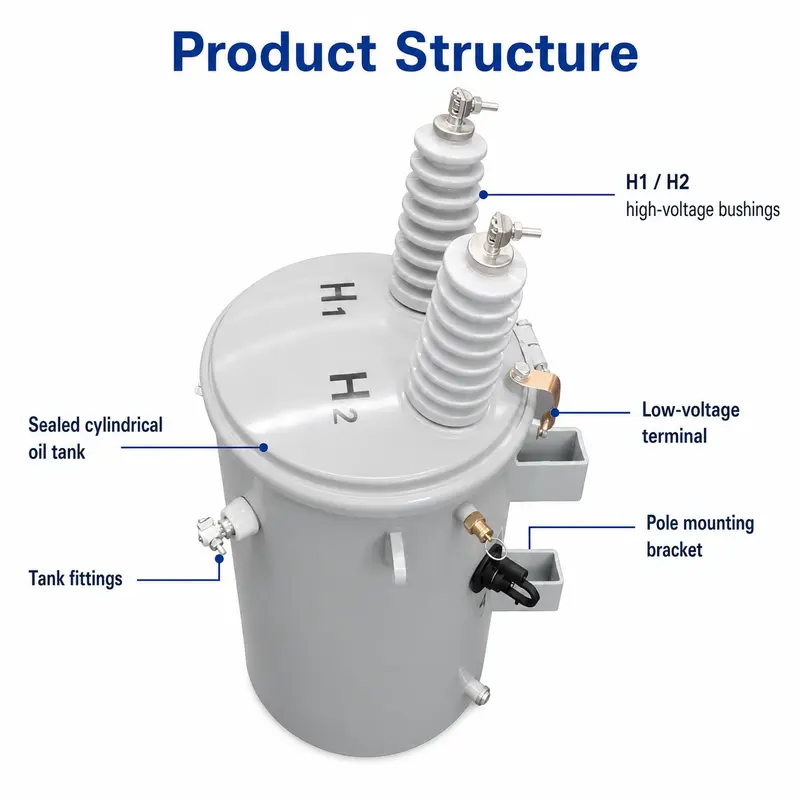

Two porcelain high-voltage bushings top the sealed steel tank, low-voltage terminals sit to the side, and integral brackets let the unit bolt straight to a pole. Sealing the tank and filling it with oil keeps moisture off the windings while the oil manages heat dissipation — a combination that holds up across every rating in the 15–333 kVA line with minimal servicing.

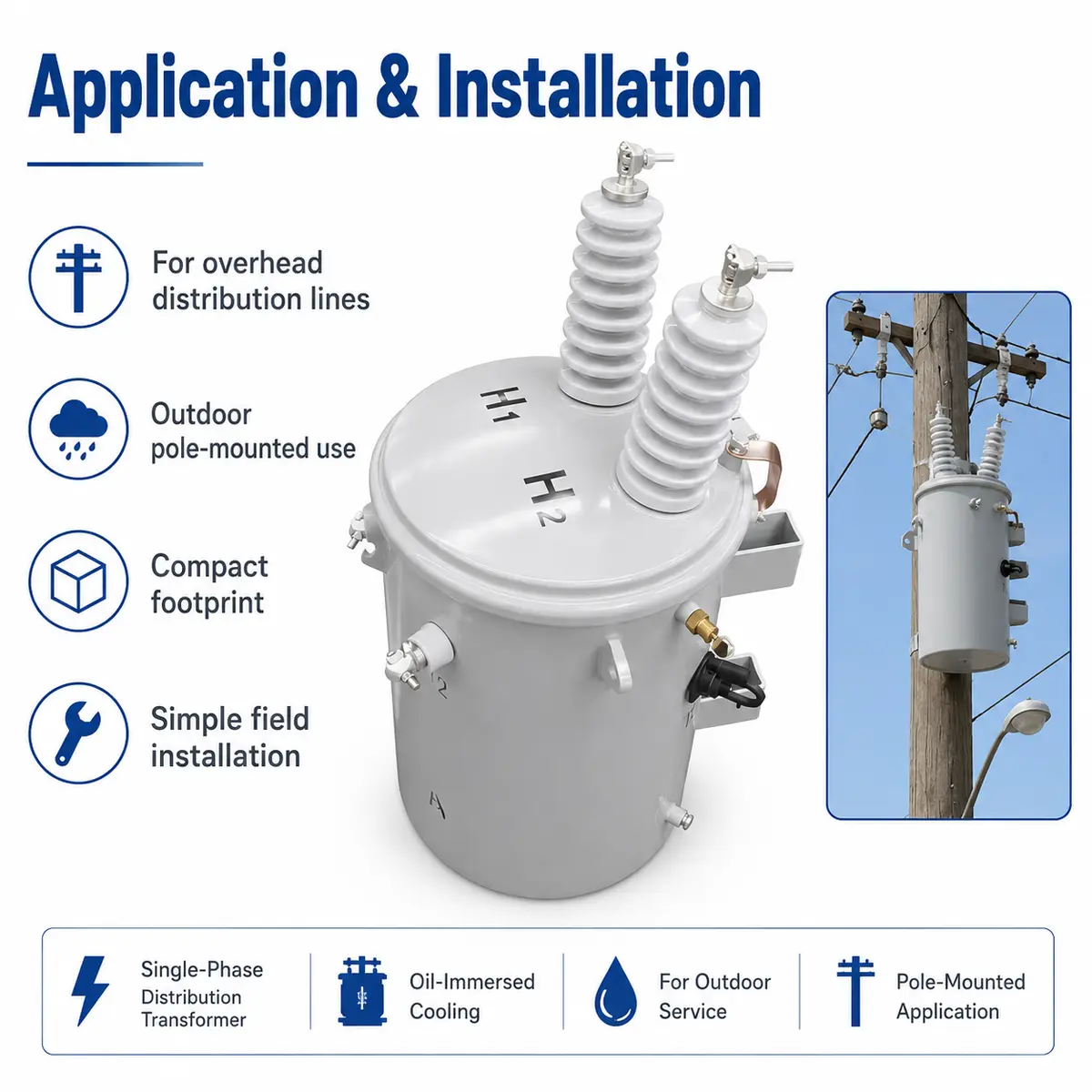

Overhead distribution circuits for residential areas, rural electrification, farms, streets and light-commercial sites needing a single-phase pole-mounted step-down at any point in the 15–333 kVA range.
Rating, HV/LV voltage, winding metal, bushing type and pole hardware can be tailored to regional grid codes, ANSI and IEC among them.

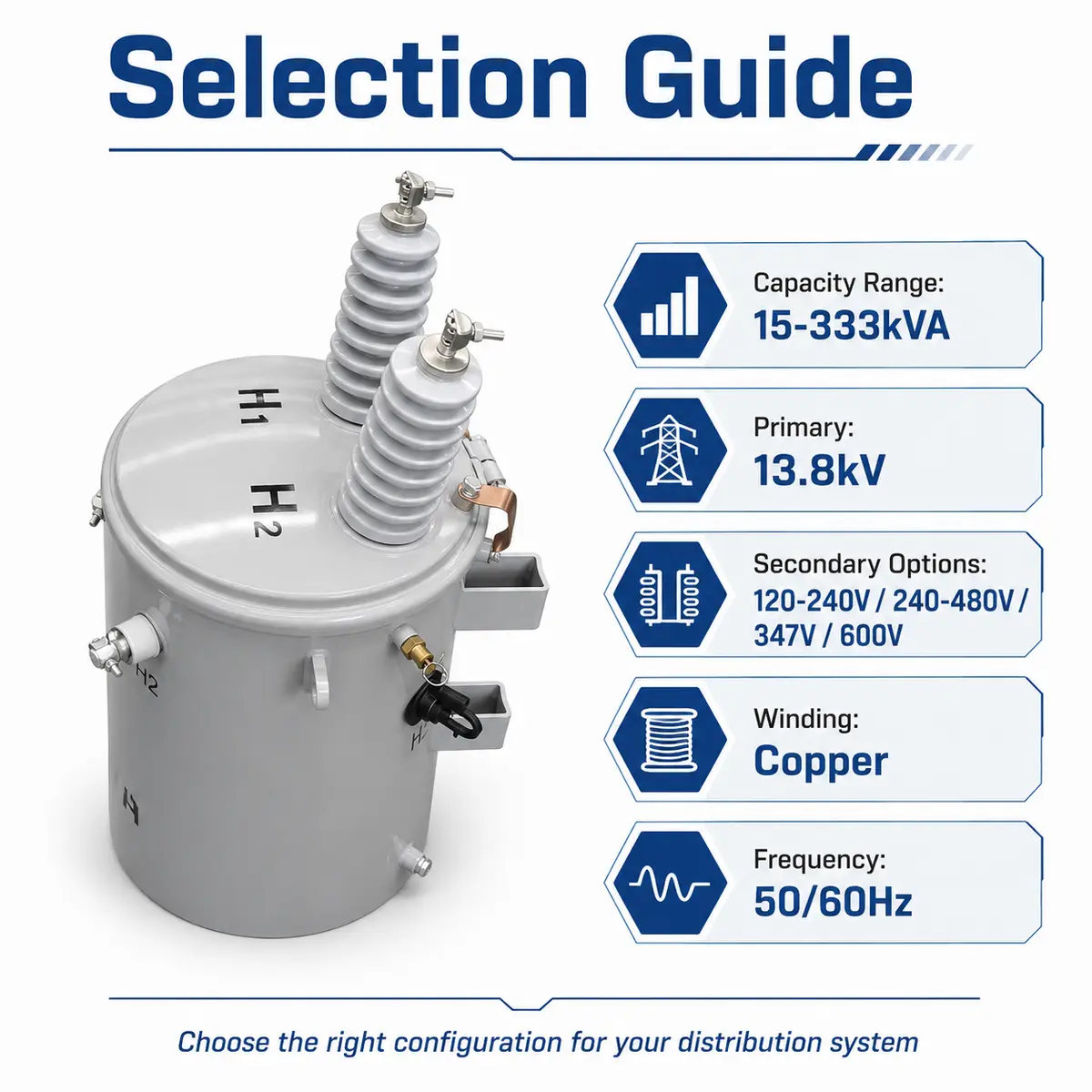

The rated capacity is 15 / 20 / 25 / 37.5 / 50 / 100 / 167 / 250 / 333 kVA, with an input voltage of 13.8 kV. Other ratings in the same series are quoted on request.
One design family covering the full 15–333 kVA span; Hermetically sealed, oil-filled tank built for long outdoor service with little upkeep; Engineered for pole and overhead-line mounting, brackets included.
Rating, HV/LV voltage, winding metal, bushing type and pole hardware can be tailored to regional grid codes, ANSI and IEC among them.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
