Power Transformers (up to 110 kV)
This heavy-duty three-phase oil-immersed unit is available in 20, 25 and 50 MVA ratings, converting a 110–115 kV supply down to 11 or 23 kV. An on-load tap…

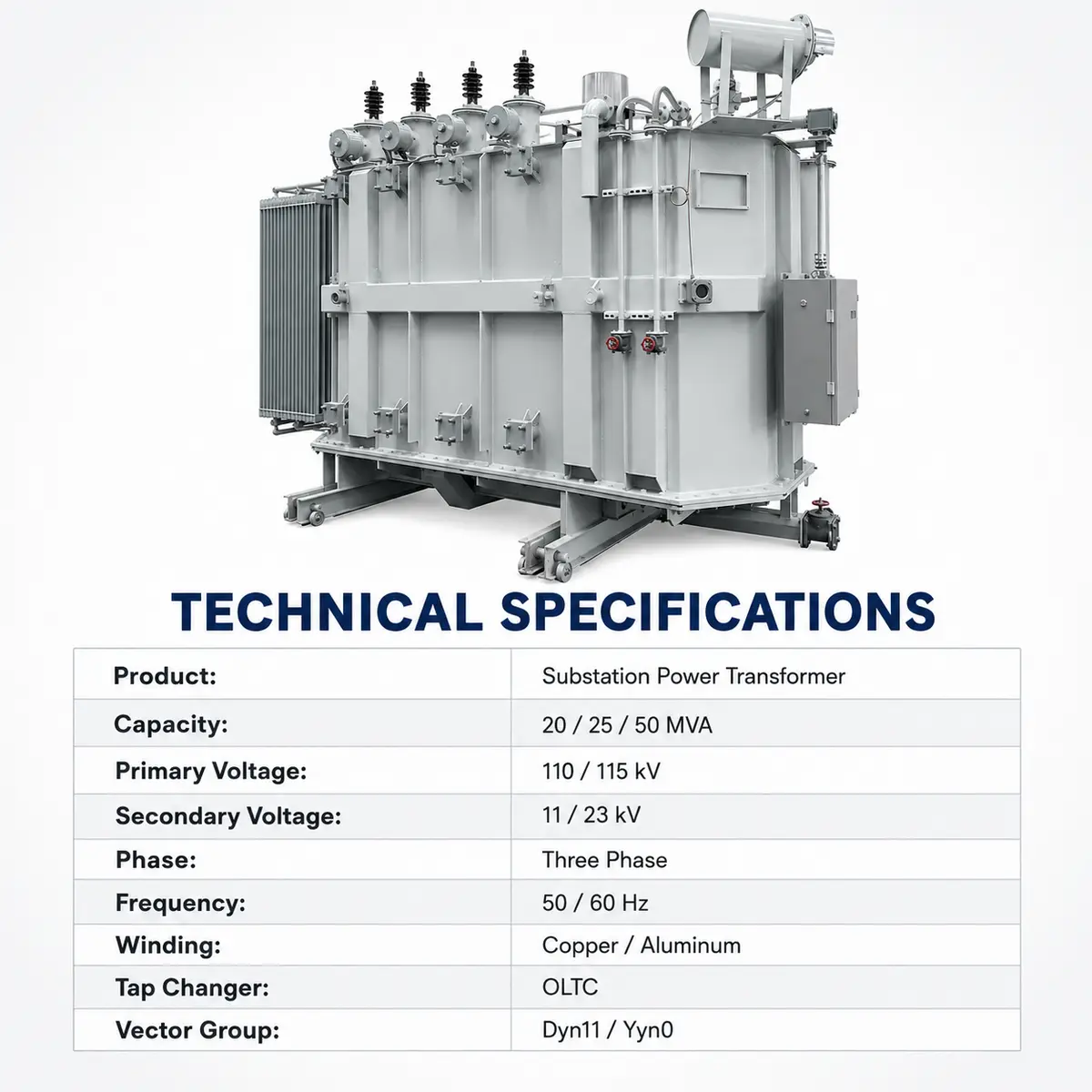

| Parameter | Value |
|---|---|
| Product Type | Three-Phase Oil-Immersed Power Transformer |
| Rated Capacity | 20 / 25 / 50 MVA |
| Input Voltage (HV) | 110 / 115 kV |
| Output Voltage (LV) | 11 / 23 kV |
| Frequency | 50 / 60 Hz |
| Phase | Three |
| Winding Material | Copper / Aluminium |
| Voltage Regulation | On-Load Tap Changer (OLTC) |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN / ONAF (oil-immersed, radiator) |
| Standard | IEC / GB |
| Certification | CE, UL, ISO9001 |
| Service Life | 20 Years |
| Packing | Wooden Case |
Figures shown reflect the supplied product data. Exact dimensions, materials, finish and packaging are confirmed at sample approval and order confirmation.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001; the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity. Every unit passes routine factory tests before dispatch.

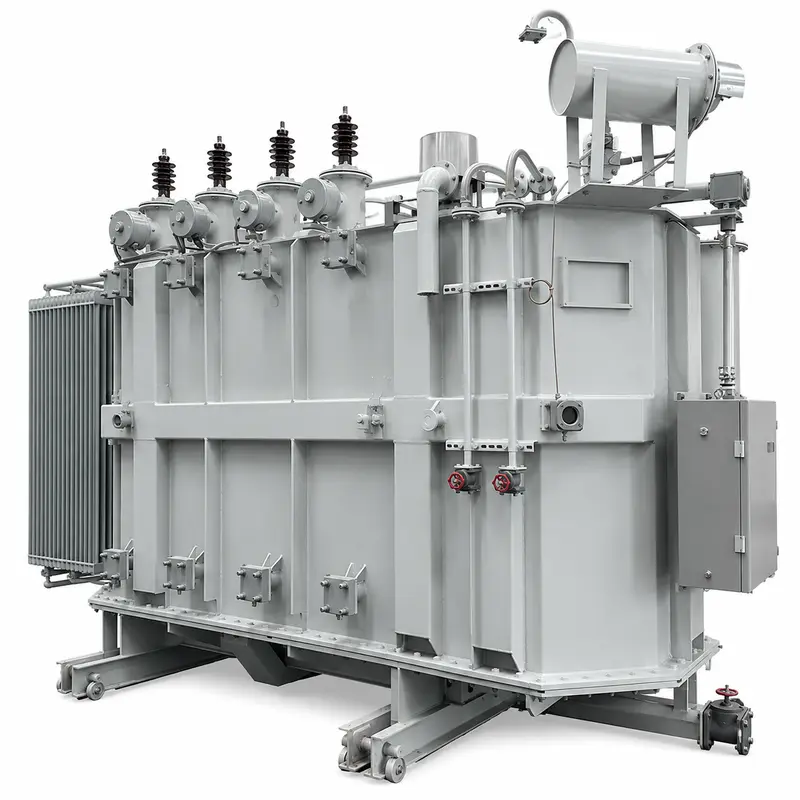

This heavy-duty three-phase oil-immersed unit is available in 20, 25 and 50 MVA ratings, converting a 110–115 kV supply down to 11 or 23 kV. An on-load tap changer (OLTC) lets the secondary voltage be adjusted automatically while the transformer stays energized and connected to load. The construction pairs a sealed steel tank with radiator-bank cooling and a conservator oil-expansion vessel, giving utility substations and heavy industrial feeders a 20-year service life. Windings are offered in copper or aluminium, and the design follows IEC/GB requirements.

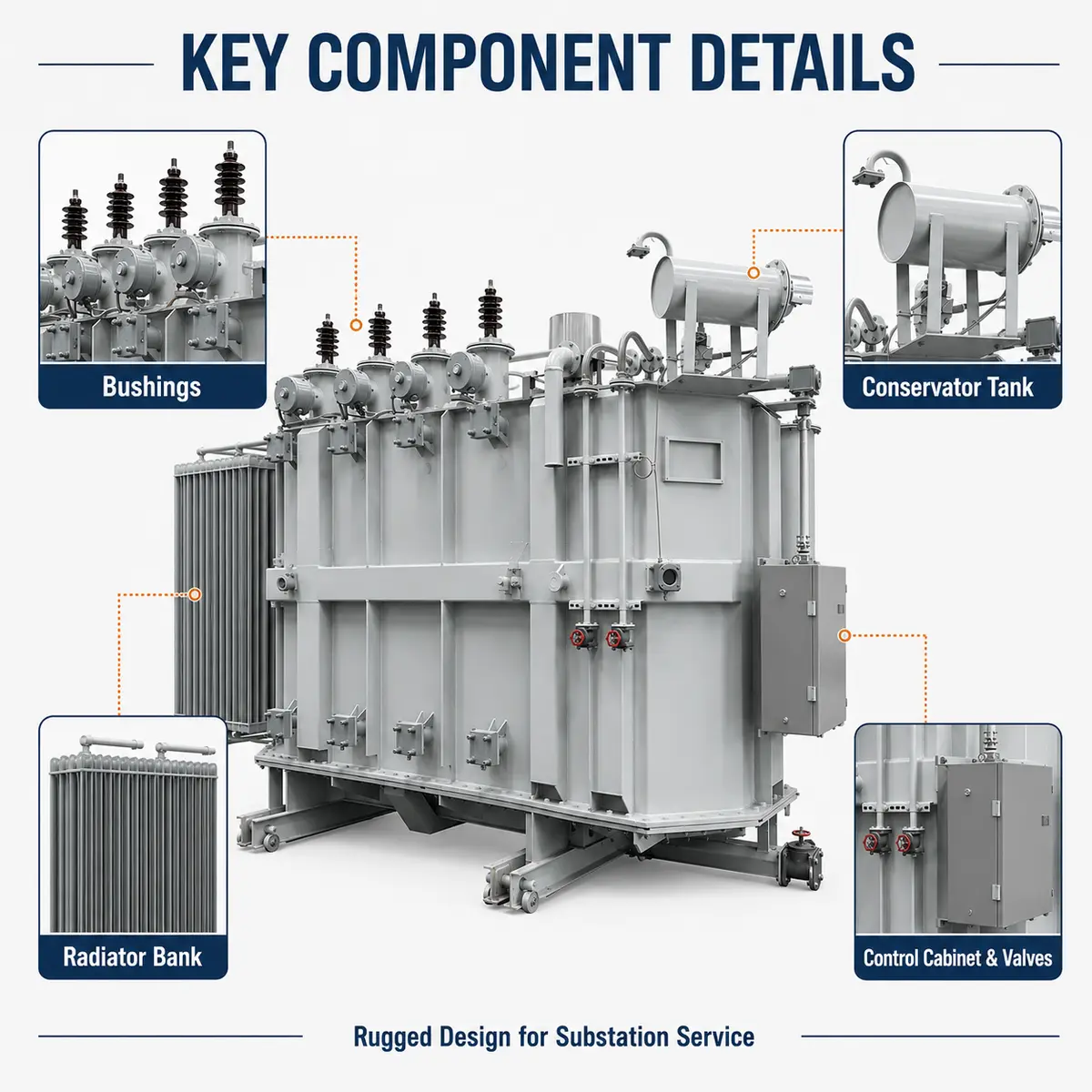

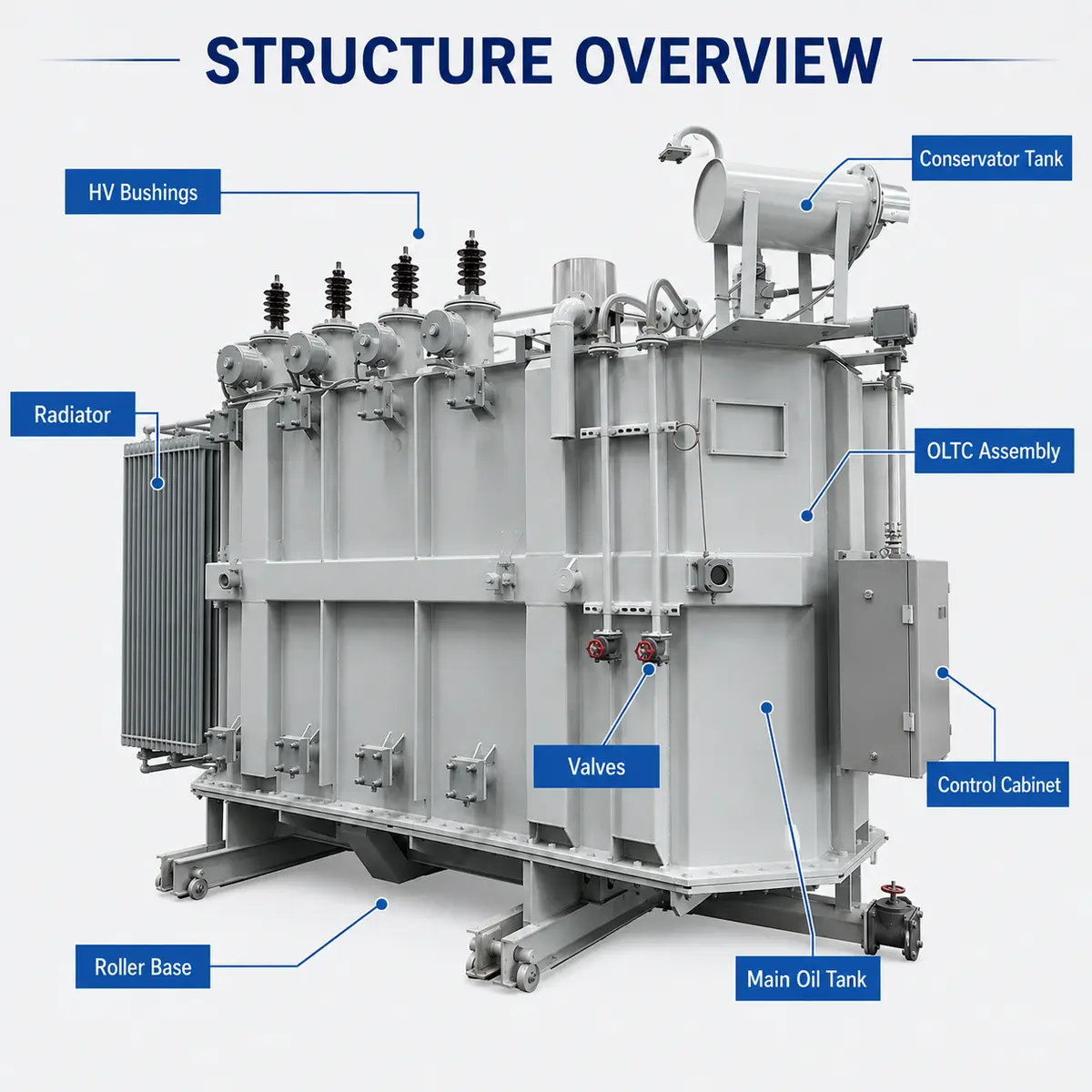

A welded steel tank supports three high-voltage porcelain bushings, a conservator mounted on top to accommodate oil expansion, radiator banks along the sides for heat rejection, and a control cabinet that houses the OLTC mechanism and protection relays. Because the tap changer operates while the unit is carrying load, secondary voltage stays within tolerance even as demand shifts — and the oil-immersed core and windings keep running at safe temperatures for the long haul.
Fits utility and industrial substations, transmission and distribution networks, step-up/step-down points on renewable-energy projects, and any large facility that needs regulated 110-kV-class power.
Capacity, HV/LV voltage combination, vector group, tap-changer style (on-load or off-circuit), cooling class and accessory fittings can all be adjusted to match a project's single-line diagram.
The rated capacity is 20 / 25 / 50 MVA, with an input voltage of 110 / 115 kV. Other ratings in the same series are quoted on request.
Built-in OLTC keeps output voltage steady without taking the load offline; Available in 20, 25 or 50 MVA for 110–115 kV transmission-class duty; Sealed oil-immersed tank with radiator cooling and conservator system.
Capacity, HV/LV voltage combination, vector group, tap-changer style (on-load or off-circuit), cooling class and accessory fittings can all be adjusted to match a project's single-line diagram.
Designed and tested to IEC / GB. Millenium production is certified to ISO 9001, ISO 14001 and ISO 45001, and the product family carries CE (ECM), UDEM attestation and an EAC declaration of conformity.
Quotation
Tell us the rating, voltages, frequency, quantity and destination. An engineer replies with a technical proposal, usually within one working day.
